pc station/thin client/mini pc/mini host/terminal pc from China manufacturer

pc station/thin client/mini pc/mini host/terminal pc

Payment Terms:	T/T,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: Ele-D525

Production Capacity: 5000 sets/month

Delivery Date: Whithin 3 days after confir...

Means of Transport: Air

Packing: power adapter, packaging,br...

SSD:8GB: memory:2GB

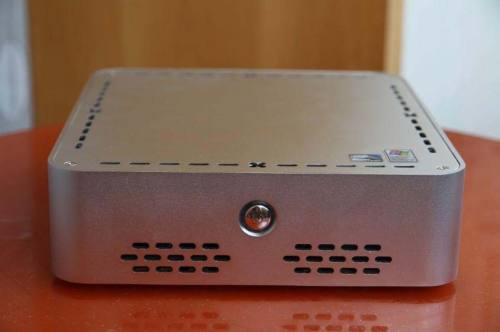

1.pc station with Atom CPU support HDMI
2.Intel Atom D525 dual-core mini PC Ele-D525

pc station with Atom CPU support HDMI

Intel Atom D525 dual-core mini PC Ele-D525

D525 mini PC has powerful functions and flexible customization, but it has only 30W power consumption--1/6 power consumption of conventional computers. With Atom processor and support HDMI

Standard Configuration:

D525 1.8GHz CPU, 2G DDR3, HDD 20G or SSD 8G

Independent Configuration: 2G DDR3, 320G HDD

Advanced Configuration: 2G DDR3, 500G HDD

Product Information
central processor	support IntelAtom mononuclear D425 processor (45nm,1.80GHz,1024MB level 2 cache)
central processor	support IntelAtom dual-core D525 processor(45nm,1.80GHz,1024MB level 2 cache)
chipset	adopt IntelAtom D525/D425 + NM10 high speeding chipset
vedio card	built -in Intel GMA 3150 vedio card (shared memory 128/224MB)
memory	1*200 needle single channel DDR3 1333/800/667 memory , maximum support to 2GB
expansion slot	1*PCI slot
storage function	2*Serial ATA2 3Gb/s controller
audio function	Realtek ALC662 6 track high fidelity audio
network function	1*RTL8103EL MB card
network function	support network wake up
On-board LVDS interface	1LVDS1 16 power interface
On-board LVDS interface	1LVDS 215 interface (support single 18bit LVDS interface)
backplane I/O port	1*12V DC- input
	1PS/2 mouse & 1 keyboard connector
	1*COM interface
	1*VGA interface, HDMI interface
	1* parallel interface
	2*USB 2.0/1.1 interface (support 4 pieces of USB equipment)
	1*RJ-45 network interface
	1* audio I/O interface (microphone and line output)
built-in I/O interface	2*fan connector
	5* RS232 connector
	1VGA 25 interface
	2*USB 2.0 interface (support 4 pieces of USB equipment)
	1*CD input
	1audio interface (25 take out 8)
BIOS	AMI 8MB DPI Flash ROM
other function	ATM, automation, medical equipment, safety field, network, POS, General Application, vedio game, transportation industry
product size	Mini ITX Form Factor(17cmx17cm)
shipping weight	Mini PC: 1.9kg; (20225.6cm) GW: 2.5kg; (262713cm)

What is ELEGOAL PC Station or NetComputer?

Most PCs are set up with multiple user accounts. Eachuser gets their own software, settings, screen colors, and so on... But only oneperson can use the PC at a time. Network PC Station changes all that. Network PCStation with desktop virtualization software allows all of the accounts to beused at the same time.

PC Stations is the independentterminal based on network. It is the first computer terminal without CPU, HD andCD-ROM. It realized many users to share the resources of the same host computer,such as CPU, memory, harddisk, driver. It connects with the host or server byTCP/IP Ethernet. Following is the working theory:

One host can support 10 users(windows 2000/2003 server can support 30 ones at most), and each user cansimultaneously share the host recourses independently and securely.

Where can use ELEGOAL PCStation?
1. Company: RealEstate Company, Security Company, Business Company, factory etc.
2.Education: School, teaching center etc.
3. Government &Not-profit

4. Family, hotel,hospital,

Why have to choose our ELEGOAL PCStation?

Network PC Station is the greenest computer in theworld. Bellowing is some benefits of Network PC Station:

Network PC Station systems save you 75% on hardware, andsince they draw less than 5 watts, you reduce your energy footprint by as muchas 90% per user. And because Network PC Station devices produce practically noheat, they reduce the need for energy-consuming air conditioning. Electricitysavings alone can pay for the Network PC Station virtual desktops in as littleas one year.
